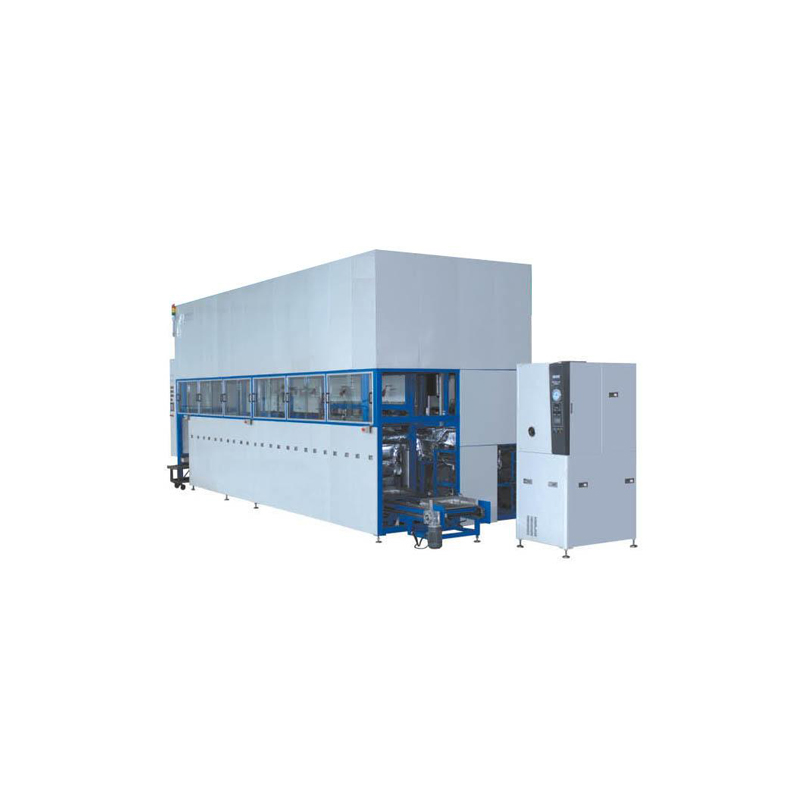

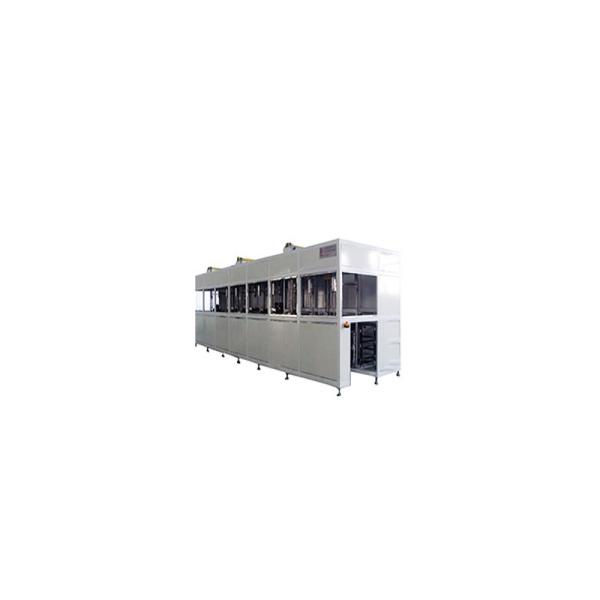

80khz Optical glass before coating automatic ultrasonic cleaning machine
Automatic ultrasonic cleaning machine
1. Do not collide or shock the four groove ultrasonic cleaner violently.
2. The cleaning of the four tank ultrasonic cleaning machine shall be in place, and the power shall be turned off when not in use.
3. The machine should not be placed in a humid environment.
4. Keep away from heat. The cleaning solution shall be accumulated, filtered or changed in time to ensure the cleaning results.
5. It is forbidden to splash conductive liquid (such as water) from the air inlet at the top of the ultrasonic control cabinet. Otherwise, it will cause serious damage to the circuit system of the ultrasonic cleaner.
6. For the washing machine that has been operated for a long time, the power knob shall be adjusted to zero position before shutdown, and the fan shall be used for another task for 3-6 minutes before shutdown, so as to ensure the heat emission inside the power supply.
7. The continuous task time of the machine shall not exceed 4 hours. If the continuous task time is too long, turn the ultrasonic conditioning knob to the '0' position, and let the cooling fan inherit the task. When the ultrasonic cleaning does not start, continue to heat the ultrasonic control cabinet for at least 2 minutes.
| Type | Internal size
L*W*H (mm) | Outsize mm
L*W*H (mm) | Frequency (Khz) | Power
(W) | Heating
(W) | Total power(W) | voltage |
| ARS-DQXJ-1006 | 280×210×210 | 320×250×350 | 20,28,33,40,80,130 | 300 | 1000 | 1300 | 220V |
| ARS-DQXJ-1012 | 400×310×280 | 520×430×600 | 20,28,33,40,80,130 | 600 | 3000 | 3600 | 220V |
| ARS-DQXJ-1018 | 490×360×320 | 610×480×675 | 20,28,33,40,80,130 | 900 | 3000 | 3900 | 220V |
| ARS-DQXJ-1024 | 630×430×320 | 740×550×675 | 20,28,33,40,80,130 | 1200 | 4000 | 5200 | 220V |
| ARS-DQXJ-1030 | 630×530×320 | 750×650×675 | 20,28,33,40,80,130 | 1500 | 4000 | 5500 | 220V |
| ARS-DQXJ-1036 | 680×530×360 | 800×650×700 | 20,28,33,40,80,130 | 1800 | 5000 | 6800 | 220V |
| ARS-DQXJ-1040 | 680×570×400 | 830×710×735 | 20,28,33,40,80,130 | 2000 | 5000 | 7000 | 220V |
| ARS-DQXJ-1041 | 730×570×450 | 880×710×735 | 20,28,33,40,80,130 | 2400 | 6000 | 8400 | 220V |
| ARS-DQXJ-1042 | 790×670×510 | 940×765×785 | 20,28,33,40,80,130 | 3000 | 6000 | 9000 | 380V |
| ARS-DQXJ-1043 | 850×770×570 | 990×820×785 | 20,28,33,40,80,130 | 4000 | 7000 | 11000 | 380V |
| ARS-DQXJ-1044 | 910×820×620 | 1050×880×840 | 20,28,33,40,80,130 | 5000 | 7000 | 12000 | 380V |
| ARS-DQXJ-1045 | 960×870×680 | 1100×940×920 | 20,28,33,40,80,130 | 8000 | 8000 | 16000 | 380V |
| ARS-DQXJ-1046 | 1100×930×730 | 1160×1000×980 | 20,28,33,40,80,130 | 10000 | 8000 | 18000 | 380V |
80khz Optical glass before coating automatic ultrasonic cleaning machine
